Cable Management Box Meeting Microphone Socket

FOB Reference Price:Get Latest Price
US $220-345 / Pieces | 40 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
JS
Model Number:
JS-MF100HD
Type:
Tabletop Socket
Grounding:
Standard Grounding
Rated Voltage:
100-240V
Rated Current:
10A 50-60HZ
Application:
Commercial
Technology:
HDBaseT
Video Format:
Up to 1080p and 4Kx2K
Frequency:
50-60HZ
Video Bandwidth::
300MHz/20Gbps
Interface:
HDMI, VGA
Color:
Silver/Black
Material:
Aluminum alloy
Power Option:
Universal, 2-pin Europe,US,Australia,France,UK, Brazil,South Africa
Panel Size:
394mmx111mm
Cutout Size:
390mmx104mm
SupplyAbility
SupplyAbility:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
8pcs/carton,Individual Box Size 48cmx18cmx18cm,Outer Box Size 57cmx59cmx38cm
Port
Beijing,Tianjin,Guangzhou, Shanghai,Qingdao
Lead Time :
General models:3-7 workdays(depends on stock condition before or

Cable Management Box Meeting  Microphone Socket


Product Description

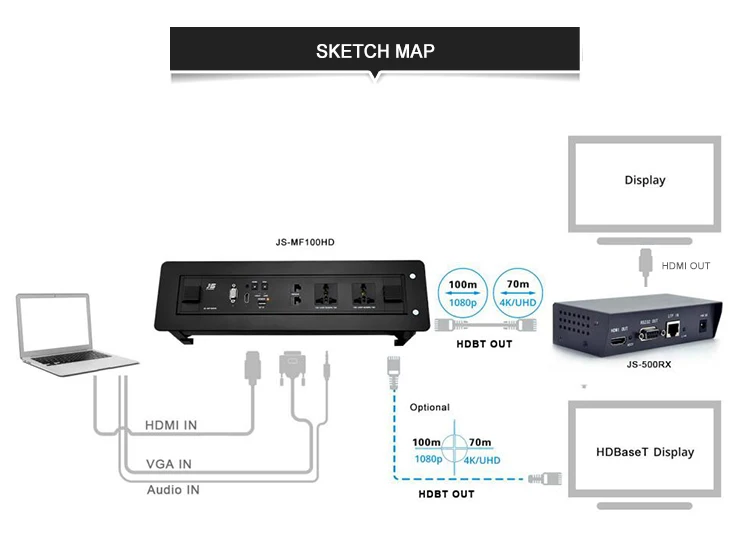

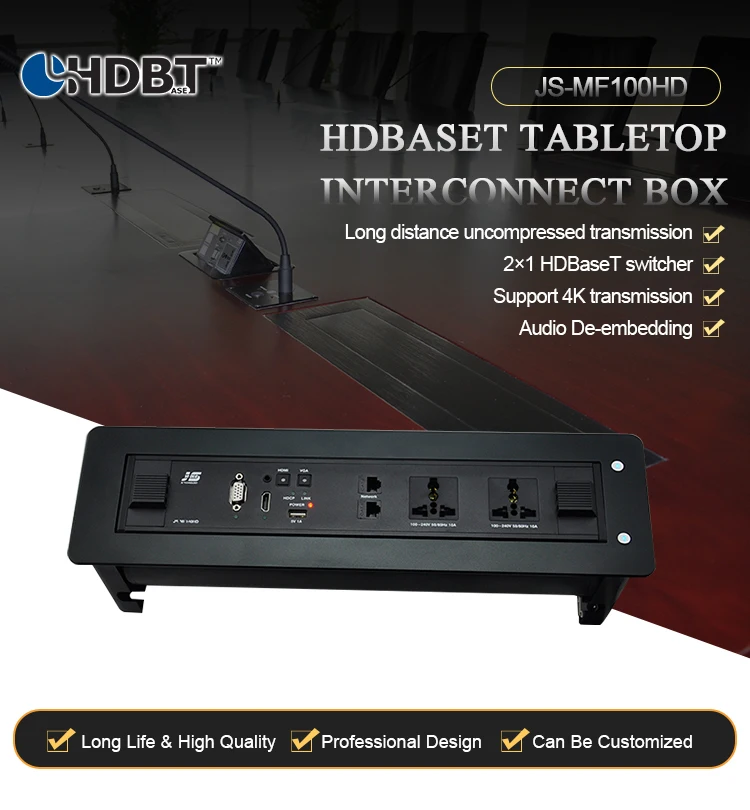

JS-MF100HD is a Retractable Tabletop Interconnect Box which supports HD conversion and long distance transmission. It can transmit VGA, Audio and HDMI signals up to 100 meters over one CAT cable (Twisted Pair Cable Type: CAT5, CAT5E, CAT6) which is easy to install.

JS-MF100HD delivers uncompressed video & digital audio to a network of devices or to a single device (point to point). It supports resolutions up to 1080P@60Hz and Blu-Ray Player and it is HDCP Compliant (Optional).

JS-MF100HD interconnect box is motor driven unit with noiseless motor inside, provides order, compact and simple connecting solution for users.





Product Displays






Features


Passed CTS Testing




Main Specifications




Video

Input

15 pin VGA and HDMI

VGA Input Signal Level Range

1.0Vp-p

VGA Input Impedance

75 ohms

Resolution Support

up to 1920 x 1080P @ 60Hz

Data Rate(Max)

4.95Gbps (R.G.B each 1.65 Gbps)

Clock Jitter

<0.2UI

Transmission Delay (Max)

5ns (±1ns)

Signal Type

DVI-D TMDS signal in DVI1.0 standard

Signal Strength T.M.D.S

800mVp-p

DDC

Built-in

HDCP

Support HDCP1.1

Output

RJ45

Output Signal Level Range

1000mV

Output Impedance

100 ohms

Data Rate

20 Gbps

Twisted Pair Cable Length

Up to 100 meters

Audio

Gain

0dB

THD+N (Total Harmonic Distortion plus Noise)

0.05% @1kHz (Rated Voltage)

Frequency Response

20Hz-20KHz

CMRR

>75dB @ 20Hz-20KHz

Input

Stereo Analog, S/PDIF

Input Connector

3.5mm audio, HDMI type A

Input Impedance

>10k omhs

Input Level(Max)

+21 dBu

Environmental

Power

≤20W

Temperature (Storage)

-20° to 150°C

Temperature (Operating)

-10° to 55°C

Humidity

20% to 50%, RHL non-condensing
